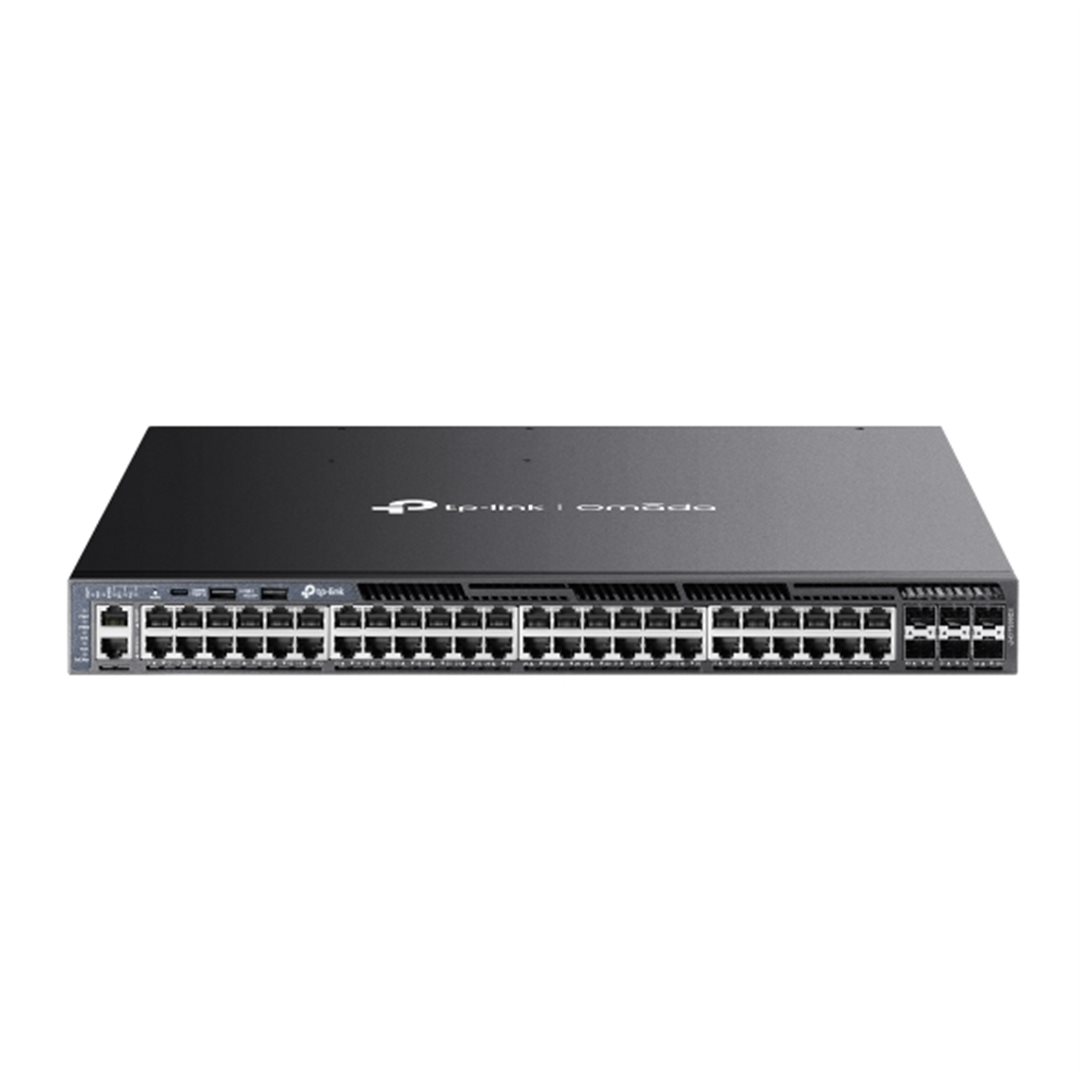

SG6654XHP Omada 48G stack L3 PoE+ 6x10G SFP+slots

SG6654XHP
Omada 48portový gigabitový stohovatelný managovaný PoE+ switch L3 se 6 sloty 10G

Funkce

• 48× gigabitových portů RJ45 PoE
• 6× 10 Gbps SFP+ slotů
• Celkový rozpočet PoE až 1440 W
• Fyzické stohování pro vestavěnou redundanci a výkon
• Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
• Vysoce dostupný díky dvěma napájecím zdrojům vyměnitelným za provozu, VRRP a ERPS
• Centralizovaná správa cloudu prostřednictvím kontroler Omada SDN
• Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

• 48× 10/100/1000 Mbps PoE+ RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

Fan Quantity

• Four Field-replaceable and Hot-swappable Fans

Power Supply

• Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• PoE Power Budget: up to 1440 W*

Max. Power Consumption

• 67.24 W (110 V/60 Hz) (With no PD connected)
• 1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)

Dimensions ( W x D x H )

• 440 × 420 × 44 mm

Mounting

• Rack Mountable

Max Heat Dissipation

• 229.29 BTU/hr (110 V/60 Hz) (With no PD connected)
• 6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)

Výkon
Switching Capacity

• 216 Gbps per Unit

Stacking

• Stacking Number: 8
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 120 Gbps (6 stack ports)

Packet Forwarding Rate

• 160.7 Mpps

MAC Address Table

• 32 K

Packet Buffer Memory

• 8 MB

Jumbo Frame

• 9 KB

Software
Quality of Service
-Class of Service

• 8 Queues of Priority
• Port Priority
• IEEE 802.1p Priority
• DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)

-Bandwidth Control

• Rate Limit
• Storm Control

-Voice VLAN
-User-Defined OUI
-Smoother Performance
-Action for Flows

• QoS remark (802.1P Remark, DSCP Remark)

L3 Features
-IP Interfaces:

• IPv4: Max 256, IPv6: Max 256

-Static Routing

• Max 1,024, IPv6: Max 512

-Host Route Table: Max 6,100 entries
-RIP: Version v1/v2, Max 8,190
-OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
-VRRP: Version v2/v3, Max 64 groups
-ECMP: 256 entries, max 32 ECMP Nexthops per Destination
-Static ARP: 512 static entries
-Dynamic ARP: 7,680 dynamic entries
-Proxy ARP
-DHCP Server:

• Max 8K IP Pools
• Max 1,000 Manual Binding Entries

-DHCP Relay:

• Relayed Interface
• Relayed VLAN

L2 and L2+ Features
-Link Aggregation
-Spanning Tree Protocol
-Port-based and VLAN-based Loopback Detection
-802.3x Flow Control
-Supports 2,048 IGMP groups
-ERPS
-Mirroring
-RSPAN
-MAC Address Table
-PIM-DM (IPv4)
-Multicast

• IGMP Snooping
• MLD Snooping
• L2 Multicast Table
• Fast Leave
• Multicast VLAN Registration (MVR)
• Static Multicast IP
• Multicast Filtering

Advanced Features
-Automatic Device Discovery
-Batch Configuration
-Batch Firmware Upgrading
-Intelligent Network Monitoring
-Abnormal Event Warnings
-Unified Configuration
-Reboot Schedule
ISP Features
-802.3ah Ethernet Link OAM
-L2PT (Layer 2 Protocol Tunneling)
-Device Link Detect Protocol (DLDP)
-DDM
-sFlow
-PPPoE ID Insertion
VLAN
-Max 4K VLAN Group (802.1q VLAN)
-802.1Q Tagged VLAN
-MAC VLAN Entries: 200
-Multicast VLAN
-Management VLAN
-VLAN VPN (QinQ): Max 256 entries
-GVRP
-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
-VLAN VPN
-Voice VLAN
-Private VLAN
Security
-Port Isolation
-CPU-Deffend
-ARP Inspection (Dynamic ARP Inspection)
-DoS Defend
-IP-MAC-Port Binding

• 1,024 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard

-IPv6-MAC

• Port Binding
• 1,024 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard

-DHCP Filter
-Static/Dynamic Port Security

• Up to 64 MAC addresses per port

-Broadcast/Multicast/Unknown-unicast Storm Control

• kbps/ratio control mode

-802.1X

• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• RADIUS authentication and accountability support

-AAA (including TACACS+)
-Secure web management through HTTPS with SSLv3/TLS 1.2
-Secure Command Line Interface (CLI) management with SSHv2
-IP/Port/MAC-based access control
Management
Management Features
-Web-based GUI
-Command Line Interface (CLI) through console port, telnet
-SNMPv1/v2c/v3

• Trap/Inform
• RMON (1, 2, 3, 9 groups)

-SDM Template
-DHCP/BOOTP Client
-802.1ab LLDP/LLDP-MED
-DHCP Auto Install
-Dual Image, Dual Configuration
-CPU Monitoring
-Cable Diagnostics
-Password Recovery
-SNTP
-System Log
-EEE
