Allied Telesis 24xG 2xSFP/ RJ 2xSFP/ + sw.AT-GS924MX

OVERVIEW

Allied Telesis CentreCOM GS900MX/MPX Series switches are cost-effective, fully managed, and stackable. The switches in this series can serve as an AMF node when an AMF Master switch is available in the network, which helps to reduce network running costs by automating and simplifying many day-to-day tasks.

With a choice of 24- and 48-port 10/100/1000T versions with 10G uplinks, Power over Ethernet (PoE), plus the ability to stack up to four units, the CentreCOM GS900MX/GS900MPX Series switches are ideal for demanding applications at the edge of the network.

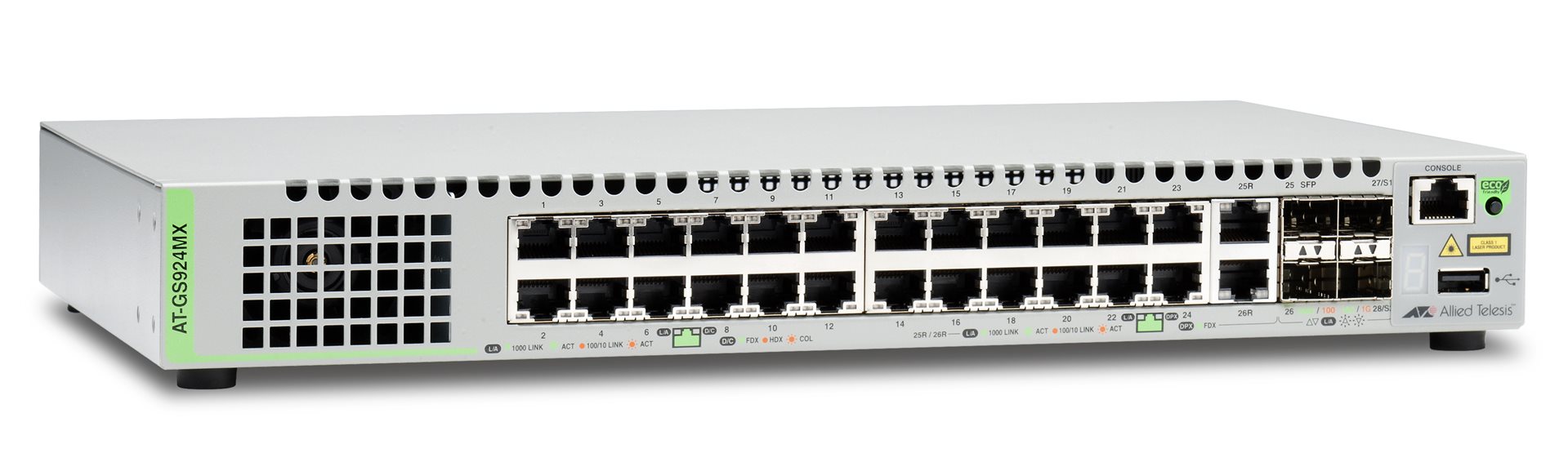

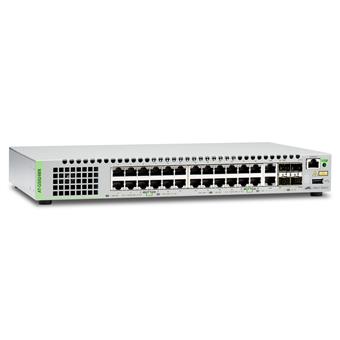

AT-GS924MX

24-port 10/100/1000T stackable switch with 2 combo ports (10/100/1000T or 100/1000X SFP) and 2 SFP+ stacking/user ports

Features

• Stacking
• Allied Telesis Management Framework™ (AMF)
• Ethernet Protection Switched Ring (EPSRing™)
• IPv6 Support
• Eco-friendly

TECHNICAL SPECS

Management

• Layer 2 Managed

Switch Type

• Fixed port

Primary Port Count

• 24

Primary Port Speed/Media

• 1G Copper

Uplink port count

• 2

Uplink Speed/Media

• 10G Fiber

Width

• 33.90cm

Depth

• 21.10cm

Height

• 4.40cm

Weight

• 2.50kg

Lowest Operating Temperature

• 0.00°C

Highest Operating Temperature

• 50.00°C
